China CA type steel agricultural chains,CA type steel agricultural chains Manufacturer
http://www.green-agparts.com/, http://greenagparts.bossgoo.com/, http://www.greenly-agparts.com/

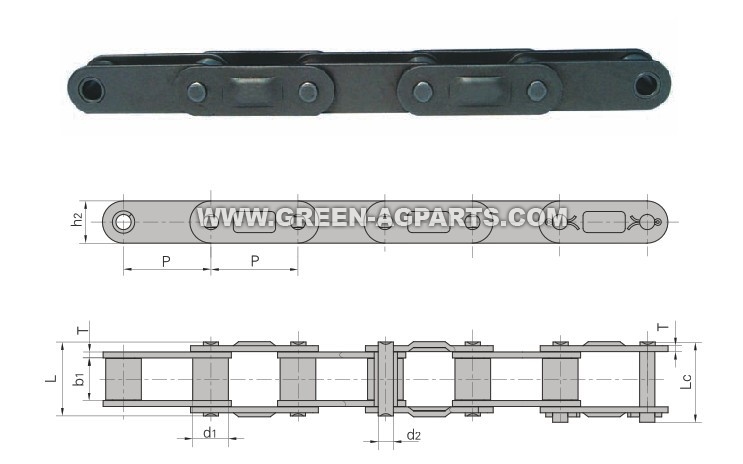

| DongHua Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin Length | Plate dimension | Ultimate tensile strength | Averange tensile strength | Weight per meter | ||
| P | d1 max | b1 max | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| CA627 | 30.00 | 15.88 | 19.05 | 8.28 | 36.11 | 39.40 | 20.50 | 3.00 | 50.00/11247 | 55.00 | 2.51 |
| CA550D | 41.40 | 16.87 | 19.81 | 7.19 | 35.00 | 38.00 | 19.30 | 2.80 | 39.10/8886 | 51.20 | 1.94 |
| CA555D | 41.40 | 16.87 | 12.70 | 7.19 | 29.10 | 32.00 | 19.30 | 3.10 | 39.10/8886 | 56.00 | 1.72 |
| CA557D | 41.40 | 17.78 | 20.24 | 8.00 | 37.40 | 40.60 | 23.10 | 3.10 | 55.61/12639 | 74.30 | 2.60 |
| CA620D | 42.01 | 17.91 | 24.51 | 7.19 | 41.80 | 45.20 | 20.20 | 3.25 | 39.10/8886 | 55.10 | 2.35 |
| CA2062H | 38.10 | 22.23 | 12.57 | 5.94 | 29.20 | 31.60 | 18.00 | 3.25 | 31.10/6992 | 35.00 | 2.30 |
| CA550 | 41.40 | 16.87 | 19.81 | 7.19 | 35.00 | 38.00 | 19.30 | 2.80 | 39.10/8886 | 51.20 | 1.94 |
| CA550V | 41.40 | 16.80 | 19.05 | 8.28 | 36.10 | 39.10 | 22.00 | 3.00 | 55.00/12499 | 68.70 | 2.24 |
| CA555 | 41.40 | 16.87 | 12.70 | 7.19 | 29.10 | 32.00 | 19.30 | 3.10 | 39.10/8886 | 56.00 | 1.72 |
| CA557 | 41.40 | 17.78 | 20.24 | 8.00 | 37.40 | 40.60 | 23.10 | 3.10 | 55.61/12639 | 74.30 | 2.60 |
| CA620 | 42.01 | 17.91 | 24.51 | 7.19 | 41.80 | 45.20 | 20.20 | 3.25 | 39.10/8886 | 55.10 | 2.35 |
| CA2060H | 38.10 | 11.91 | 12.70 | 5.94 | 29.20 | 31.60 | 18.00 | 3.25 | 31.10/6996 | 40.50 | 1.45 |
