China CA type steel AG chains,CA type steel AG chains Manufacturer
http://www.green-agparts.com/, http://greenagparts.bossgoo.com/, http://www.greenly-agparts.com/

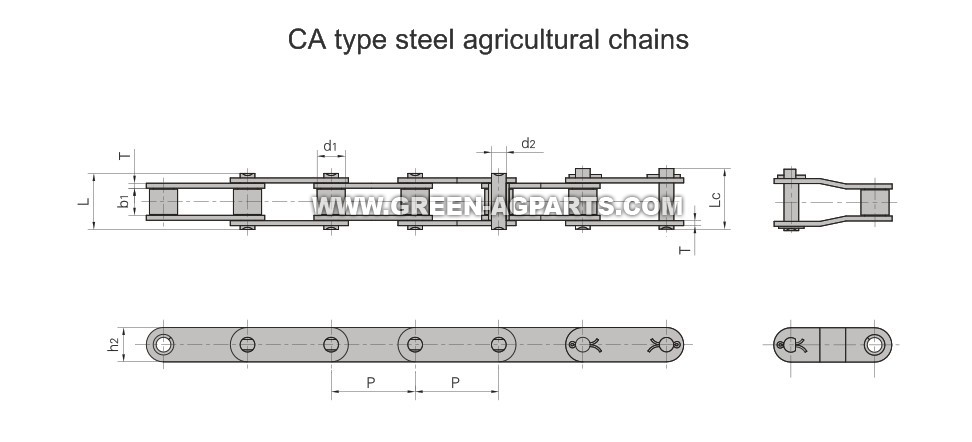

| DongHua Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin Length | Plate dimension | Ultimate tensile strength | Averange tensile strength | Weight per meter | ||
| P | d1 max | b1 max | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| CA550F4 | 41.40 | 14.35 | 20.24 | 7.14 | 35.00 | 38.50 | 19.05 | 2.80 | 50.00/11363 | 52.00 | 1.76 |
| CA550F5 | 41.40 | 16.66 | 20.24 | 7.14 | 35.00 | 38.50 | 19.05 | 2.80 | 45.00/10227 | 52.00 | 1.97 |
| CAE44151 | 28.58 | 15.88 | 16.20 | 7.92 | 33.50 | 36.90 | 22.20 | 3.25 | 58.80/13363 | 64.50 | 2.73 |
| 38.4R | 38.40 | 15.88 | 19.05 | 6.92 | 33.80 | 36.40 | 17.30 | 2.50 | 33.00/7480 | 41.20 | 1.70 |
| 38.4V | 38.40 | 15.88 | 18.00 | 6.92 | 35.00 | 38.00 | 17.30 | 3.00 | 40.00/9091 | 50.00 | 1.83 |
| 38.4VB | 38.40 | 15.88 | 19.05 | 8.28 | 36.10 | 39.40 | 20.50 | 3.00 | 50.00/11363 | 62.50 | 2.17 |
| 55VD | 41.40 | 17.90 | 23.00 | 8.22 | 39.30 | 42.40 | 20.00 | 2.80 | 42.00/9546 | 45.00 | 2.34 |
| S62F3 | 41.91 | 19.05 | 25.40 | 8.00 | 42.00 | 44.60 | 26.00 | 3.00 | 47.00/10796 | 58.70 | 3.12 |
| CA960 | 41.40 | 17.78 | 22.61 | 8.90 | 40.00 | 43.00 | 23.10 | 3.00 | 66.00/15160 | 72.60 | 6.94 |
| CA550VF2 | 41.40 | 16.80 | 19.05 | 8.28 | 36.10 | 38.80 | 20.00 | 3.00 | 55.00/12499 | 68.70 | 2.13 |
| CA550H | 41.40 | 16.74 | 20.00 | 7.14 | 36.00 | 39.10 | 19.10 | 3.00 | 57.82/13000 | 60.80 | 2.00 |
