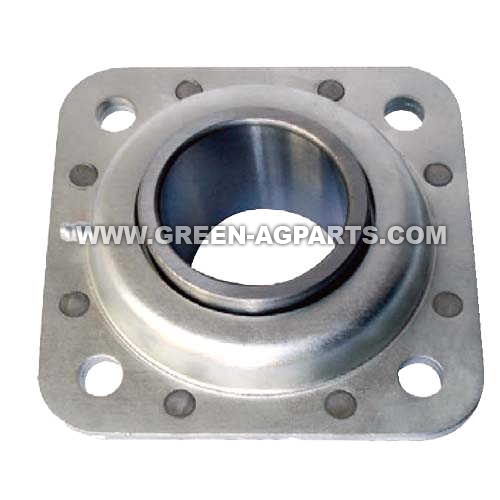

China Flanged disc harrow bearings units,Flanged disc harrow bearings units Manufacturer
http://www.green-agparts.com/, http://greenagparts.bossgoo.com/, http://www.greenly-agparts.com/
dynamic alignment, positive relubrication, close clearance shroud protects bearing circumferentially restrained outer ring, high performance BCA-NTN harrow bearing, plated case hardened stampins, solid rivet retention of stampings.
| Part Number | BCA Number | Fafnir Number | A.shaft size | B. | C. | D. | E. | F. Bolt Hole |
| ST491A | FD209RJA | DHU491A | 1 3/4 Round | 1.6400" | 1.6870" | 5.0000" | 5.0000" | 0.531" |
| FD208R | N/A | N/A | 1 Square | 1.378" | 1.503" | 4.75" | 4.69" | 12A50 |
| ST491B | FD209RB | DHU 1 1/2R209 | 1 1/2 Round | 1.6400" | 1.6870" | 5.0000" | 5.0000" | 0.531" |
| FD209RK | FD209RK | DHU 1 1/4S209 | 1 1/4 Square | 1.6400 | 1.6870 | 5.0000 | 5.0000 | 0.531" |
| FD209RM | FD209RM | DHU 1 1/8S209 | 1 1/8 Square | 1.6400" | 1.6870" | 5.0000" | 5.0000" | 0.531" |
| FD210R | FD210R | N/A | 1 1/8 Square | 1.7500" | 1.7500" | 5.0000" | 5.0000" | 0.531" |
| FD211RB | FD211RB | DHU 2 3/16R211 | 2 3/16 Round | 1.7990" | 2.1870" | 5.5000" | 5.5000" | 0.531" |
| FD211RE | FD211RE | DHU 1 3/4R211 | 1 3/4 Round | 1.7990" | 2.1870" | 5.5000" | 5.5000" | 0.531" |
| FD211RJA | FD211RJA | DHU 1 15/16R211 | 1 15/16 Round | 1.7990" | 2.1250" | 5.5000" | 5.5000" | 0.531" |
| FD211RM | FD211RM | DHU 1 1/2S211 | 1 1/2 Square | 1.7990 | 2.0000" | 5.5000" | 5.5000" | 0.531" |
| FD211RP | FD211RP | N/A | 40mm Square | 1.7990 | 2.0060" | 5.5000" | 5.5000" | 0.531" |
