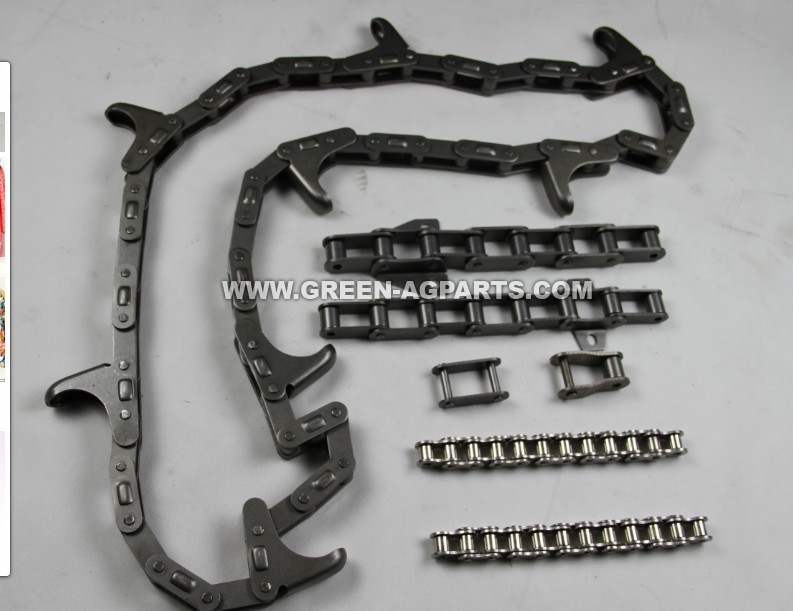

China John Deere planter chain for MaxEmerge series,John Deere planter chain for MaxEmerge series Manufacturer
http://www.green-agparts.com/, http://greenagparts.bossgoo.com/, http://www.greenly-agparts.com/
|
PLANTER CHAIN CHARTS(BOXED) |
|||||
| Description | Part number | Chian links/size | 7000-7100 MaxEmerge | 7200-7300 MaxEmerge 2 | 1700 MaxEmerge Plus |
| Herbicide/insecticide | G43719 | 100 links/#41 | x | ||
| Seed meter | G20978 | 98 links/#41 | x | ||
| Seed transmission | G21483 | 44 links/#2040 | x | x | |
| Countershaft to seed tans. | G21484 | 38 links/2040 | x | ||
| Dry fertilizer trans. | G21523 | 51 links/#2040 | x | ||
| Wheel drive,6W,8N&12N-7000 | G22372 | 56 links/#2050 | x | ||
| Wheel drive,7100 | G28486 | 50 links/#2050 | x | ||
| Wheel drive,4N,4W&6N-7000 | G37881 | 53 links/#2050 | x | ||
| Countershaft to seed tans. | G32249 | 105 links/#40 | x | x | |
| Seed transmission | G32250 | 86 links/#40 | x | x | |
| Countershaft to dry fert.trans.1770 | G32255 | 64 links/40 | x | x | |
| Liquid or dry fertilizer trans. | G32257 | 93 links/#40 | x | x | |
| Herbicide/insecticide | G33048 | 104 links/#41 | x | x | |
| Plateless seed meter | G42795 | 102 links/#41 | x | x | |
| Vacuum seed meter | G33060 | 112 links/#41 | x | x | |
| Drive reverser | G35365 | l04 links/#40 | x | x | |
| Seed&fertilizer drive | G35503 | 128 links/#40 | x | x | |
| Chain assy-jackshaft-1770 | G35927 | 60 links/#41 | x | x | |
| Chain roller | G36324 | 54 links/#2050 | x | x | |
| Wheel drive-7300 | G131583 | 116 links/#50 | x | x | |
| Wheel drive-7200 | G37980 | 113 links/#50 | x | x | |
| Wheel drive-1770 | G32887 | 140 links/#50 | x | ||
| Piston pump jacketshaft-1770 | G38451 | 65 links/#40 | x | x | |
| Roller,jackshaft-8R-7240/1780 | G39722 | 108 links/#40 | x | x | |
| Roller,jackshaft-4R-7240/1780 | G39728 | 117 links/#40 | x | x | |
| Roller,trans. to jack-1780 | G40972 | 102 links/#40 | x | x | |
| Roller,trans. to count-1780 | G40973 | 56 links/#40 | x | x | |
| Roller,counter-drill 1780 | G41262 | 66 links/#40 | x | x | |
| Roller unit drive | G42795 | 103 links/#41 | x | x | |
| Herb&Insect drive,vacuum | G43718 | 113 links/#41 | x | x | |
| Herb&Insect drive,(1996-) | G43719 | 110 links/#41 | x | x | |
| Roller unit drive | G43720 | 140 links/#41 | x | x | |
| Seed meter drive | G43721 | 132 links/#41 | x | ||
| Chain assembly | G161203 | 113 links/#41 | x | x | |
| Drill Chain charts(Boxed) | |||||
| 455 Folding Drill | |||||
| Description | Part No. | Chain links/size | |||
| Upper drive | G49570 | 97 links/#40 | |||
| Lower drive | G49571 | 78 links/#2040 | |||
| 750 Drill | |||||
| Description | Part No. | Chain links/size | Application | ||
| Upper drive | G46954 | 206 links/#40 | |||
| Lower drive | G46955 | 260 links/#40 | (S/N 26046-) | ||
| Lower drive | G46955 | 248 links/#40 | (S/N-16549) | ||
| Lower drive | G46963 | 130 links/#2040 | (S/N 16550-26045) | ||
